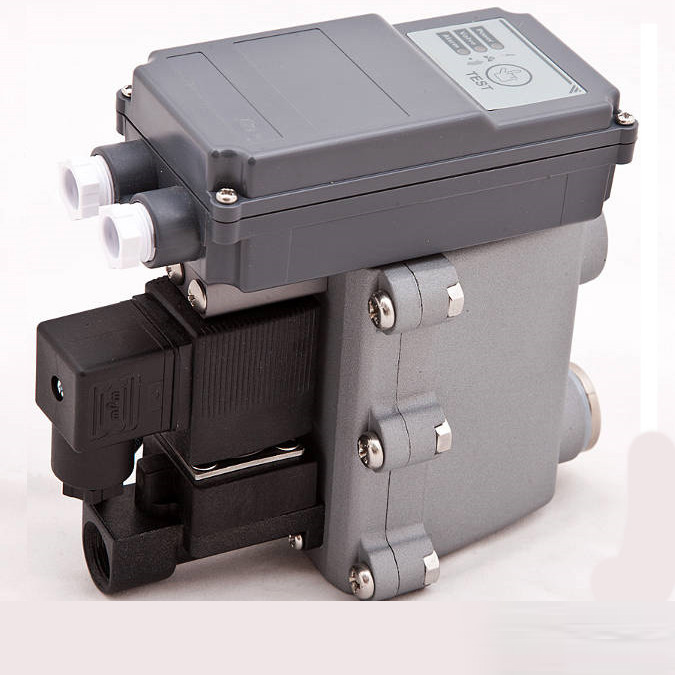

Electronic No Loss Drain
300-01-005N
| Type | NLD-5N |
|---|---|
| Order Ref. | 300-01-005N |
| Inlet | 1/2” x 2 |
| Outlet | 3/8” x 1 |
| Thread Type | NPT |
| Air Compressor Performance | 7m³/min |
Description
The Electronic No Loss Drain removes harmful condensate from receiver tanks, aftercoolers, dryers, filters and drip legs.
Features
- 100% Continuous duty
- LED lights to indicate power is ON and to indicate valve is OPEN
- Manual override switches
- NEMA 4 (IP65) enclosure
- 6 ft heavy duty power cord with AC plug – DIN
- Bright power indicator
- CE & TUV approved to UL standards
- Brass body with stainless steel internals
- Long lasting VITON seals
- Maximum working pressure up to 250 PSI
Benefits
- Improves air system performance
- Eliminates frequent downtime maintenance
- Prevents corrosion and scaling
- Increases the air-carrying capacity of the pipelines
- Prevents freezing and bursting of pipelines in winter
- Extends equipment life
| Housing Protection | IP65 |
|---|---|
| Type | NLD-5N |
| Order Ref. | 300-01-005N |
| Inlet | 1/2” x 2 |
| Outlet | 3/8” x 1 |
| Thread Type | NPT |
| Air Compressor Performance | 7m³/min |
| Filter Performance (max) | 70m³/min |
| Short term peak load | 32 l/hr |
| Operating Pressure (min/max) | 0.8 – 16 Bar |
